Similarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0.02 volt at low current and averages 0.1 volt at higher currents.

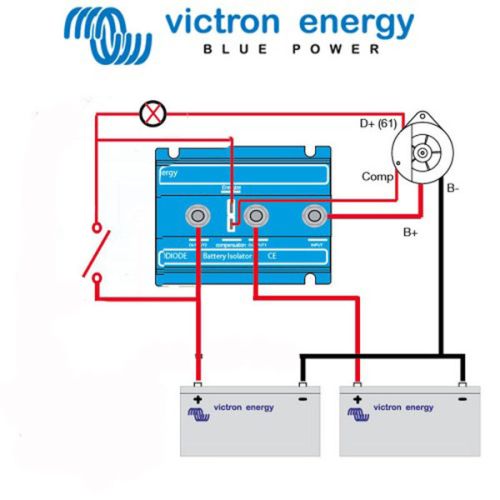

Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new Argofet isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.
Argo FET Battery Isolator | 100-2 | 100-3 | 200-2 | 200-3 |
Maximum charge current (A) | 100 | 100 | 200 | 200 |
Maximum alternator current (A) | 100 | 100 | 200 | 200 |
Number of batteries | 2 | 2 | 3 | 3 |
Connection | M8 bolts | M8 bolts | M8 bolts | M8 bolts |
Weight kg (lbs) | 1.4 kg (3.1 lbs) | 1.4 kg (3.1 lbs) | 1.4 kg (3.1 lbs) | 1.4 kg (3.1 lbs) |
Dimensions h/w/d | 65 x 120 x 200 mm 2.6 x 4.7 x 7.9 inches | 65 x 120 x 200 mm 2.6 x 4.7 x 7.9 inches | 65 x 120 x 200 mm 2.6 x 4.7 x 7.9 inches | 65 x 120 x 200 mm 2.6 x 4.7 x 7.9 inches |
Additional Information
Victron Argo Fet Review
Additional Information
Manufacturer | Victron Energy |
---|---|
Data Sheet | https://www.victronenergy.com/upload/documents/Datasheet-Argo-Fet-Battery-Isolators-with-alternator-energize-input-EN.pdf |
Product Manual | https://www.victronenergy.com/upload/documents/Manual-Argofet-EN-NL-FR-DE-IT-ES-SE-TR.pdf |
Victron Argo Fet 100-3
Victron Energy FET Battery Isolators Argo FET Isolators are High Efficiency - Low Voltage Drop! Similarly to silicon diode type battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. Victron Energy Argo FET Battery Isolators. Sign in to check out Check out as guest. Adding to your cart. The item you've selected was not added to your cart. Add to Watchlist Unwatch. 100% buyer satisfaction. More than 66% sold. Victron ARG100301020 Argofet 100 Amp Diode Battery Isolator for three batteries. When using ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator.Some alternators require a B+ voltage at a terminal in order to start charging and this isolator has a special dedicated connection for that purpose.
